Hills FB607314 1.8m 44mm Tin Roof Mount

$100.00

SKU: 250086 Category:

Description

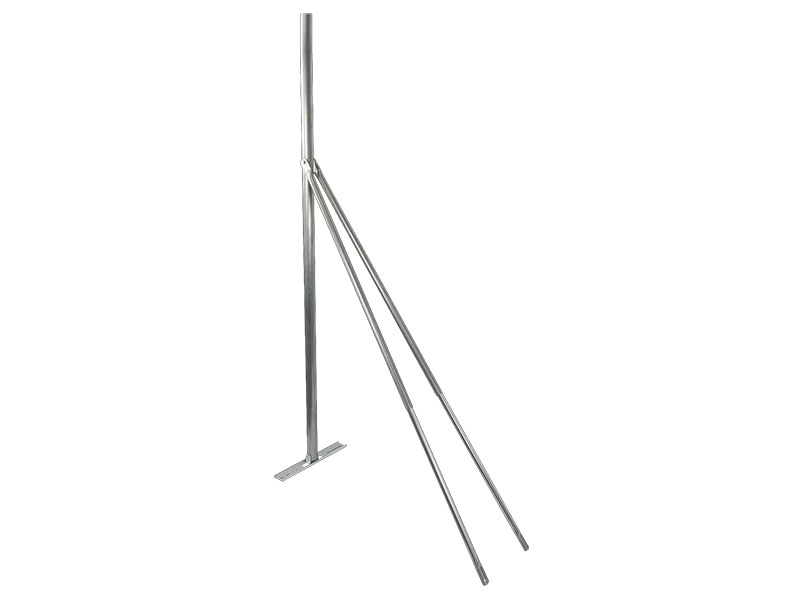

Hills FB607314 1.8m 44mm Tin Roof Mount

TheHills Antenna FB607314 1.8m Metal Roof Mount is a solid and flexible option for attaching to various metal roofs. The baseplate is designed with multiple mounting holes to fit different roof profiles securely. The mast is 1.8 meters long and made from pre-galvanized steel, with a 44.5mm outer diameter and 1.2mm wall thickness. This makes it strong and durable, and it pairs well with the Starlink Pole Adaptor.

The length of the mast helps protect the dish by reducing heat reflection from the roof, which is great for dealing with Australia’s intense sun. To ensure a stable and secure installation, the mount comes with two telescopic stays. Cyclone washers and rubber seals are included to create a tight seal and prevent possible water ingress. Overall, this mount provides a reliable setup, handling tough conditions and offering good protection for your equipment.

Specifications

Dimensions
Mast: 1800(L) x 44.5(0) mm
Outer Stays: 1060(L) x 25(0) mm
Inner Stays: 1060(L) x 20.5(0) mm
Base: 400(W) x 52(D) mm
Materials Mast & Stays: 1.2mm thick, Pre-Galvanised Steel
Base: 2.5mm thick, Mild Steel HDG

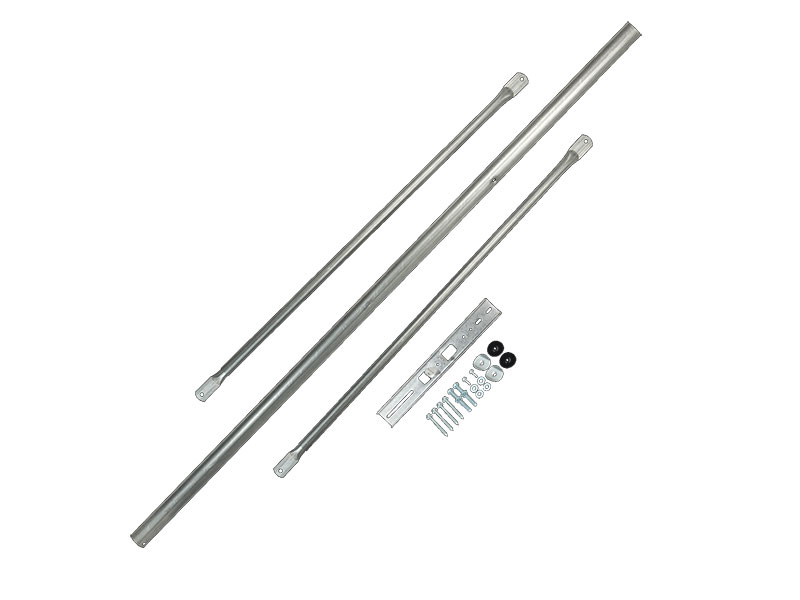

What’s in the box

• 1x 1.8m Mounting Mast
• 1x Metal Roof Baseplate
• 2x Telescopic Stays (2x Outer & 2x Inner)
• 2x Cyclone Washers
• 2x Rubber Washers
• 4x Washers
• 2x Hexagon Screws
• 2x M8 Hexagon Head Bolts
• 2x M8 Flange Nuts
• 4x Hexagon Self-Tapping Screws

Additional information

Weight 60 kg
