Pro2 PRO1183 IR Repeater Kit

$55.00

SKU: 450023 Category: Tags: ,

Description

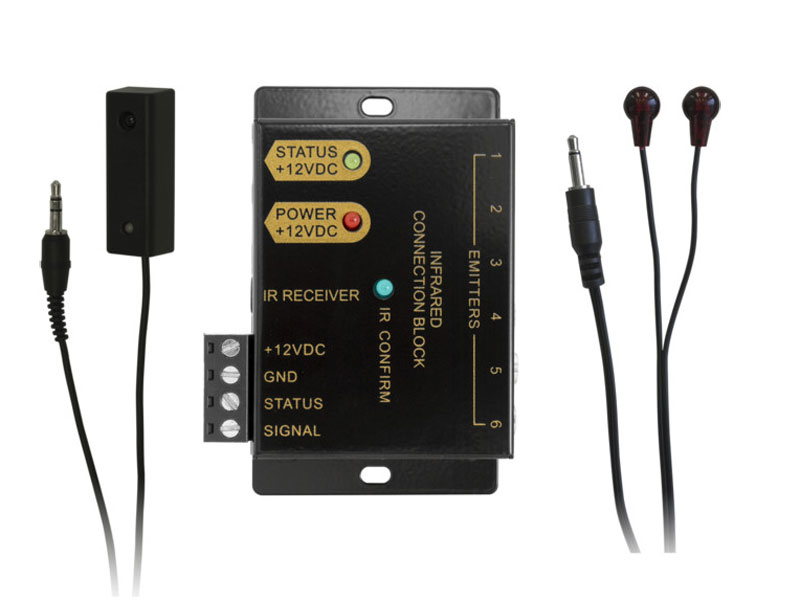

Pro2 PRO1183 IR Repeater Kit

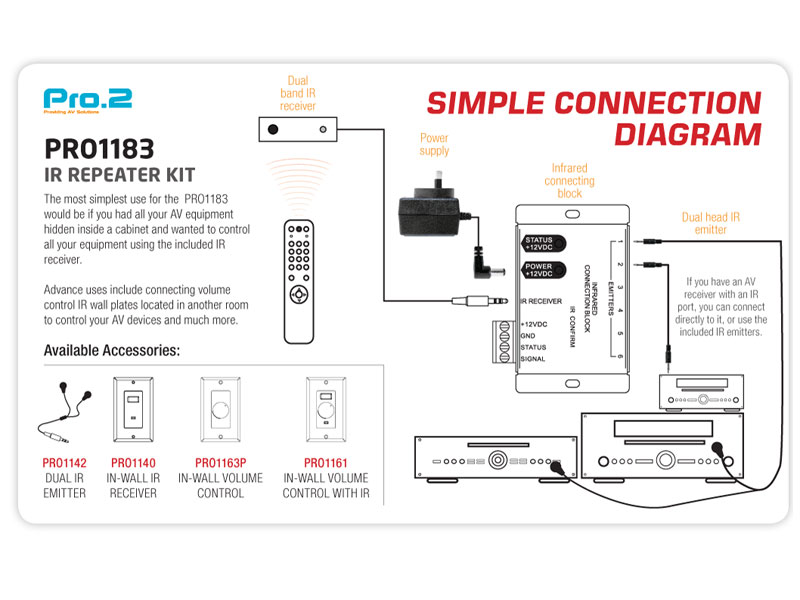

  • Infrared connecting block
    Connects IR receivers, power supply and emitters together to interface the IR system to the audio/ video components.

    • Six emitter output connections
    • Convenient IR confirmation LED
    • Status power receptacle with LED indicator
    • 3 conductor 1/8″ receptacle for interfacingwith many brands of free standing IR receivers
    • Compact size for mounting near audio equipment
    • 82 (W) x 60 (H) x 27 (D) mm
    • 110 g
  • Mini stick infrared receiver
    Receives IR signals from a handheld IR remote control and relays this signal to the audio/video equipment for operation from another room. The receiver has a non-skid base and is placed on a flat surface.

    • CFL friendly – allows installation in areas with compact fluorescent lighting.
    • Blue IR confirmation LED
    • Wide band IR
    • 3 m cable with 3.5 mm stereo mini plug
  • Infrared emitter
    • Round shape, with elegant & compact size
    • Transparent housing
    • 10ft cable length
    • 3.5mm standard mono plug
    • With self-adhesive tape for quick and easy fixing on any hard, clean and dry surface
  • 12 V 200 mA power supply

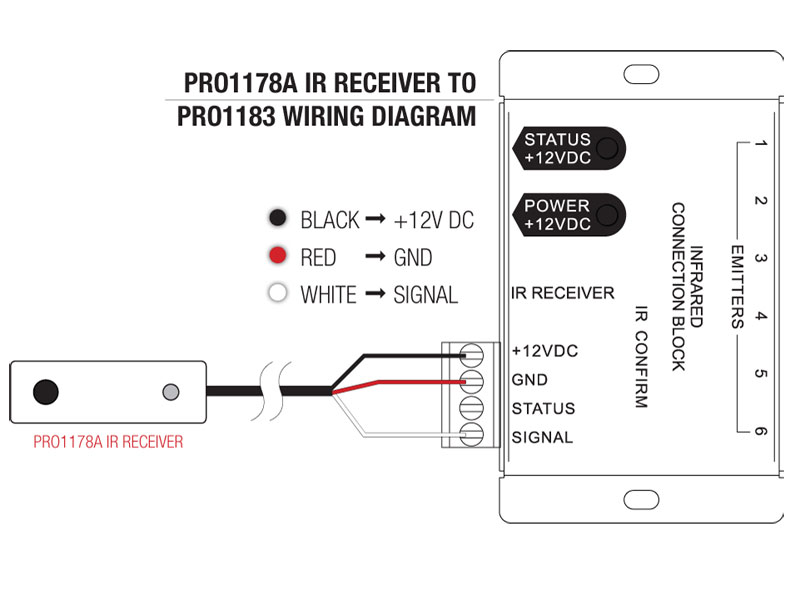

    IR Receiver

    • Foxtel Compatible
      • Receive Frequency Range: 34 KHz ~ 60 KHz
      • Transmit Frequencies: 38 KHz ~ 56 KHz
    • Range:
      • 12 metres (40 ft) @ 38 KHz
      • 7.6 metres (25 ft) @ 56KHz
    • Power: 12V DC 30mA max.
    • 45 (L) x 14 (W) x 13 (H) mm
    • Cord Length: 3 metres (10 ft)
    • Connector Type: 3.5mm TRS mini plug
    • Weight: 28 g

Foxtel Compatible

Additional information

Weight 1 kg
