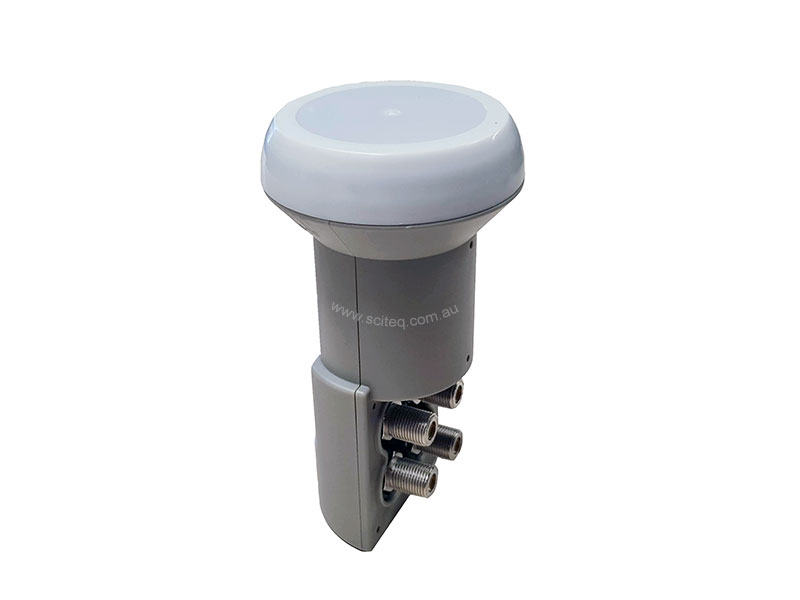

Acer LNBF 10.7GHz LNBQU-LC Quad Output



Acer LNBF 10.7GHz LNBQU-LC Quad Output

The Acer LNBF 10.7GHz LNBQU-LC Quad Output is a Foxtel approved product for multi receiver applications including VAST installations


Input Frequency Range: 11.7 – 12.75 GHz
Output Frequency Range: 1000 – 2050 MHz
Local Oscillator Frequency: 10.7 GHz x 4
Local Oscillator Stability ±1.0MHz max (@25°C), ±2MHz (@-40°C-+60°C)
LO Phase Noise: -50dBc/Hz@1kHz, -75dBc/Hz@10kHz, -95dBc/Hz@100kHz
Noise Figure: 0.8dB (@25°C typ)
Relector Type: Offset
Feedhorn Mounting: 40mm Standard size
Conversion Gain; 58-66dB
Gain Flatness: ±0.5dB/26MHz, ±3dB max./Full Band
Cross Polarity Isolation Typical: 25dB
Image Rejection: 45dB min
Output P1 dB: 0dBm min
Output VSWR in 75Ohms: 2.0:1 max
DC Current Consumption: 160mA type
Polarity Switching Voltage: Vertical 10.5-14V Horizontal: 16-19V
Operating Temperature: -40°C-+60°C
Output Connector: 75Ohm F Type Female x 4

Foxtel Approval F30553



Knowledge. Call us up and the staff that answers the phone can answer your question! Sciteq technicians have many years of experience in the satellite tvro industry.  We also offer honest advice without any hard sell.  We’re all West Australians and familiar with Western Australian towns and locations.

Track Record. We’ve been around for more than 20 years and intend to stay on. So you’ll know if you have any problems later down the track, we’ll still be here to help! Have a look at our website and you’ll see we still carry spare parts for receivers we sold 10 years ago.

Service. Place an order before 3pm and we’ll dispatch same day! We have dedicated dispatch staff so you’ll be sure your order will leave without delay.

Additional information

Weight 0.4 kg
