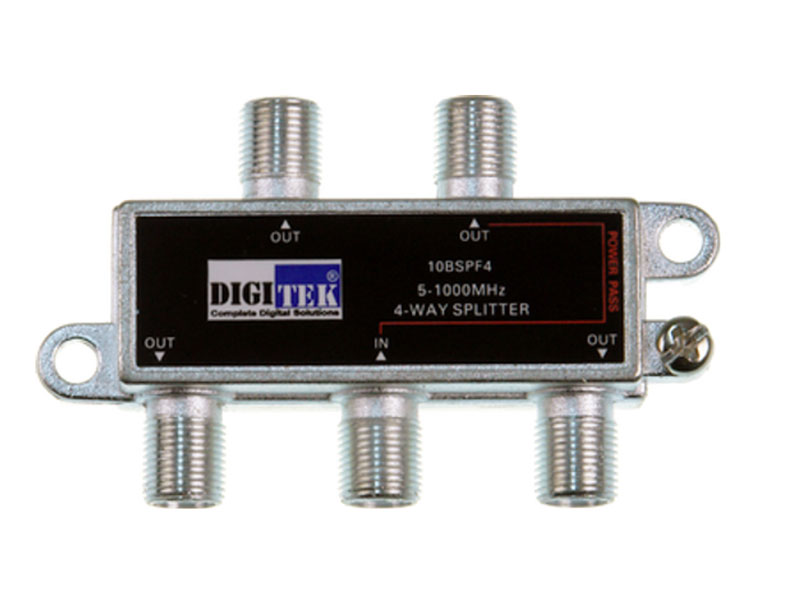

Digitek 10BSPF4 4 Way TV Splitter 5 – 1000 MHz

$7.00

Description

Digitek 10BSPF4 4 Way TV Splitter 5 – 1000 MHz

Features

Power pass one leg
Zinc die cast housing, tin plated.
Light weight and compact size
Easy installation with two edge hole sites
Screening factor: 5-1000MHz >100dB
Micro-strip circuit design and perfect performance index
All ports F-F connector 75Ohm

Specifications

Frequency Range Insertion Loss Mutual Isolation Return Loss
5-40MHz 7.0dB 27dB 20dB
40-470MHz 7.0dB 30dB 20dB
470-860MHz 7.5dB 30dB 18dB
860-1000MHz 8.2dB 25dB 17dB





WHY BUY FROM US?

Knowledge. Call us up and the staff that answers the phone can answer your question! Sciteq technicians have many years of experience in the satellite tvro industry.  We also offer honest advice without any hard sell.  We’re all West Australians and familiar with Western Australian towns and locations.

Track Record. We’ve been around for more than 20 years and intend to stay on. So you’ll know if you have any problems later down the track, we’ll still be here to help! Have a look at our website and you’ll see we still carry spare parts for receivers we sold 10 years ago.

Service. Place an order before 3pm and we’ll dispatch same day! We have dedicated dispatch staff so you’ll be sure your order will leave without delay.

Additional information

Weight 0.1 kg
