Doss VPB45HD RJ45 Video & Power Balun

$20.00

Description

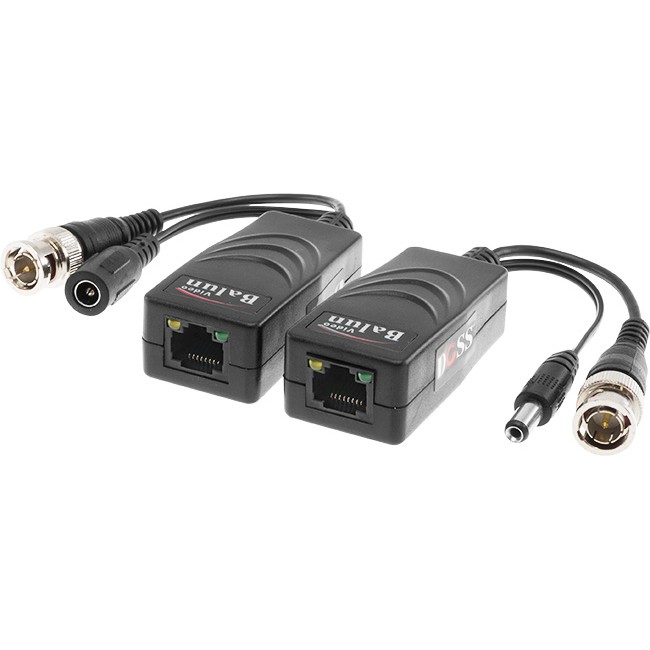

Doss VPB45HD  RJ45 Video & Power Balun

The Doss VPB45HD is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effective UTP unshielded Twisted Paired cable.

The Doss VPB45HD is compatible with all HD-TVI, HD-CVI and AHD analogue cameras. Used in pairs which eliminates costly and bulky coaxial cable.

The superior interference rejection and low emissions of the balun allow video & power signals to coexist in the same wire bundle as telephone, datacom or low-voltage power circuits. Also it has built in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.

Which is the best cable to work with?
We recommend to use it with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG. Individually shielded pairs should be avoided as they reduce the operating range of the systems drastically.

Features
Single channel HD video & Power transmitter & receiver
Real-time transmission over UPT cat5e/ 6
NTSC, PAL & SECAM video format compatible
Compatible with all HD-TVI, HD-CVI, AHD & CVBS analogue cameras
Colour video max up to 440m for HD-CVI 720P camera
Colour video max up to 210m for TVT HD-TVI 720P camera
Colour video max up to 300m for AHD 720P camera
Male BNC with extended 150mm mini-coax pigtail
RJ45 jack for UTP cable
Built- in TVS for surge protection
Wave filter design, Anti-static design
Lightning protection design Grade: III
60 dB crosstalk and noise immunity
ABS engineering plastic housing
Applications
Security Monitoring System
Multimedia Network Teaching System
Medical Monitoring Display System
Industrial Automation Control System
Banking, securities, financial information display system
Remote Network Server Monitoring
Department Store Security
Casino Security
Hospitals, Airports and banks
School Campuses

Specifications
Applied Devices CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
Video Video Format PAL, NTSC, SECAM
Operating Frequency DC to 42MHz
Max Distance HD-TVI 720P: 190m HD-CVI 720P: 440m AHD 720P: 300m
HD-TVI 1080P:190m HD-CVI 1080P: 220m
AHD 960P: 240m
AHD 1080P: 220m
Common-mode/Differential-mode rejection 15KHz to 42MHz 60 dB type
Impedance Coax, Male BNC75Ω unbalanced
UTP, RJ45 100Ω balanced
Attenuation 1.5 dB typ Max
Wire Type Network Wiring One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)
Category Type 2 or better
Impedance 100 ± 20 ohms
DC Loop Resistance 52 ohms per 1,000ft (18 ohms per 100m)
Differential Capacitance 19 pF/ft max (62 pF/m max)
Power No external power required
Connector Video input/ output Male BNC connector
Video input/ output RJ45 Jack
Protection Surge Protection renewable solid state surge protection
Video Input 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Video Output 2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Mechanical Housing ABS engineering plastic
Body Color Black
Dimensions(L*W*H) 38.4*18.6*19.5mm (BNC connector excluded)
Net Weight 40g
Environmental Operating Temperature −20°C ~ 70° C
Relative Humidity 0~95% (non-condensing)
Storage Temperature −40°C ~ 150°C

Balun LEDs
Power indicator—power is being transmitted/received
Over-current—maximum current (1.5A) has been exceeded

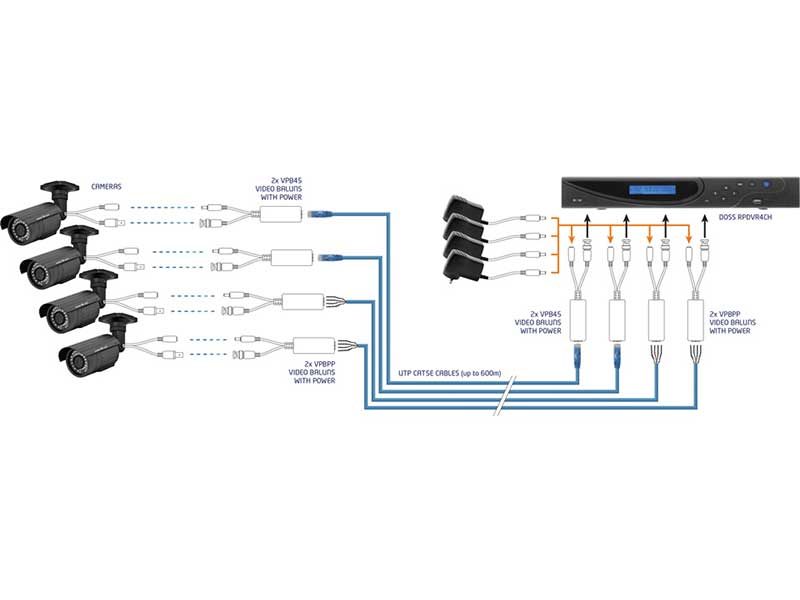

Video And Power Balun Wiring

Pin1 Pin2 Pin3 Pin4 Pin5 Pin6 Pin7 Pin8
T568A White/Green Green White/Orange Blue White/Blue Orange White/Brown Brown
T568B White/Orange Orange White/Green Blue White/Blue Green White/Brown Brown
DOSS Video + Power Balun Video Video Power- Power- Power- Power+ Power+ Power+



Additional information

Weight 0.1 kg
