Description

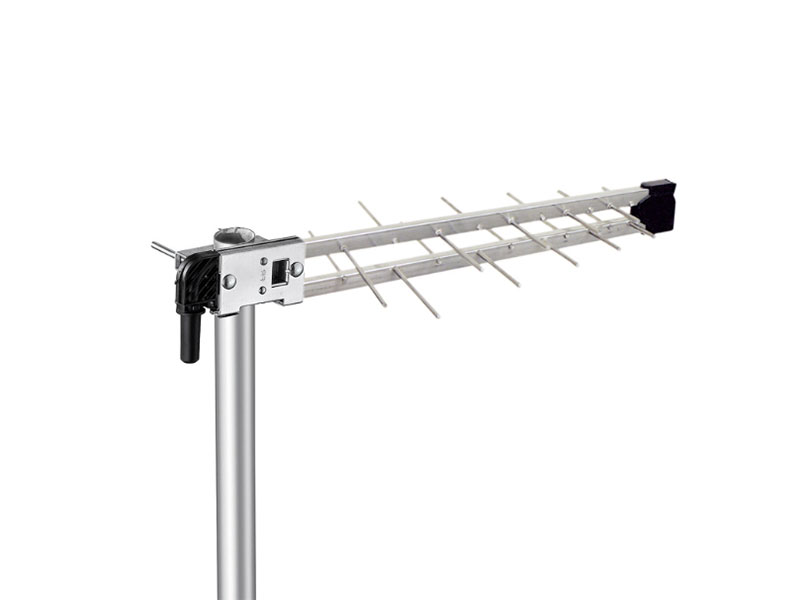

Fracarro LP45F700 MINI UHF Log Periodic Antenna
The Fracarro LP45F700 MINI UHF Antenna is a pre-assembled aerial for UHF band characterized by extremely easy connection due to the F connector being located near the mast clamp.
- Thanks to the special pole mount, the antenna can be installed in both vertical and horizontal polarisation without adapters or other accessories.
- The geometric distribution of the dipoles has been redesigned to achieve excellent filtering for interfering signals in the 5G and 4G LTE band above 694 MHz reserved for mobile telephony.
- It features excellent mechanical resistance for fixing the elements to the cradle, excellent mechanical resistance to rotation on the pole, and good electrical performance.
- The F connector is protected by a bayonet connector cover.
Specifications
| LP45F700MINI | ||
| Code | 216256 | |
| Elements | n° | 10+10 |
| Band | UHF | |
| Channel | E21-E48 | |
| Bandwidth | MHz | 470-694 |

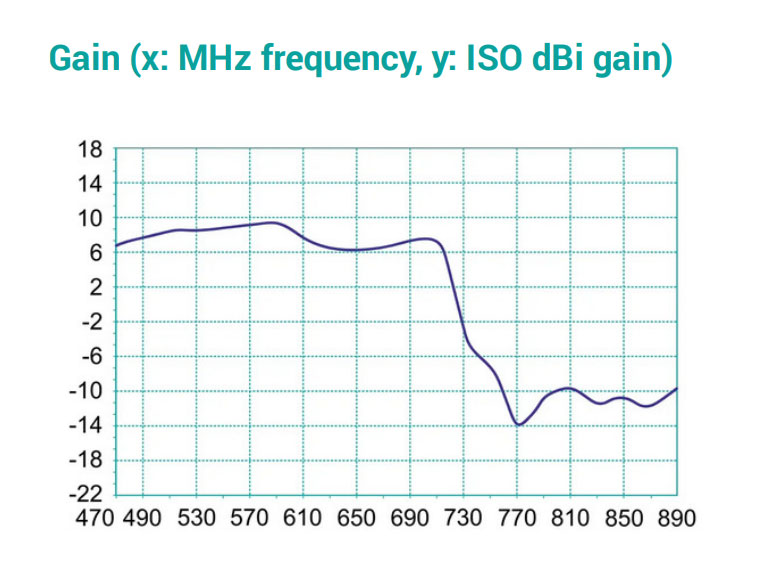

| Gain | dBi | 9 |
| Front/Back ratio | dB | 30 |
| Return loss | dB | -15 |

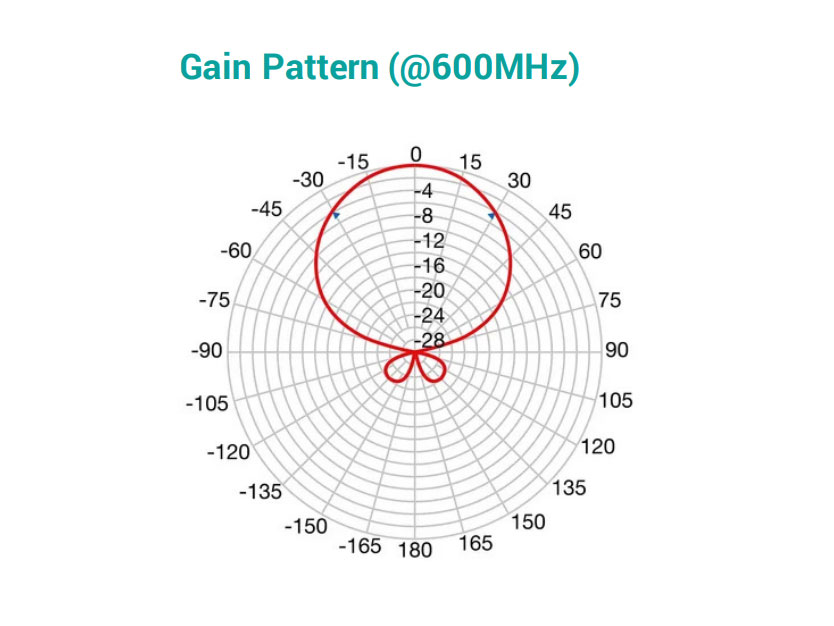

| Beam width (3dB) | ° | ±30 |
| Wind load 120Km/h 729N/m² | Kg (N) | 2.7 (26.5) |
| Connector | F | |
| Impedence | Ohm | 75 |
| Max mastdiameter | mm | 60 |
| Dimensions | cm | 44 x 36 |
| Accessories | ||
|---|---|---|
| Horizontal polarization | Included | |
| Horizontal polarization Tilt adjustment | PV10 (210011) | |
| Vertical polarization | Included | |
| Vertical polarization Tilt adjustment | PV10 (210011) | |
| Auxiliary boom | N.P. | |
| Dimensions and packaging | ||
| Pcs | 30 | |
| EAN code | 8016978104093 | |
| Multiple EAN | 8016978104277 | |
| Unit weight | Kg | 0.50 |
| Total weight | Kg | 15.0 |
