Description

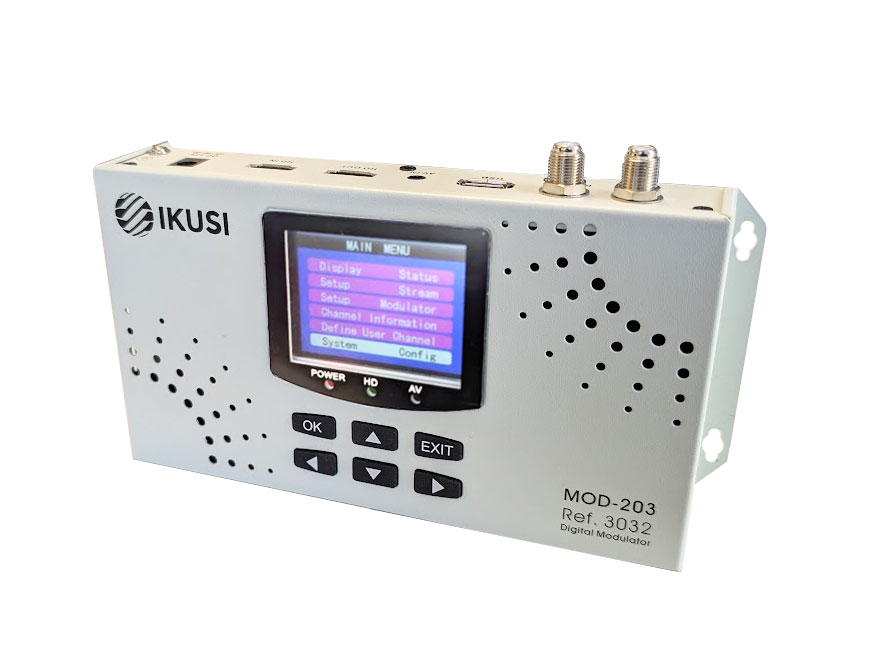

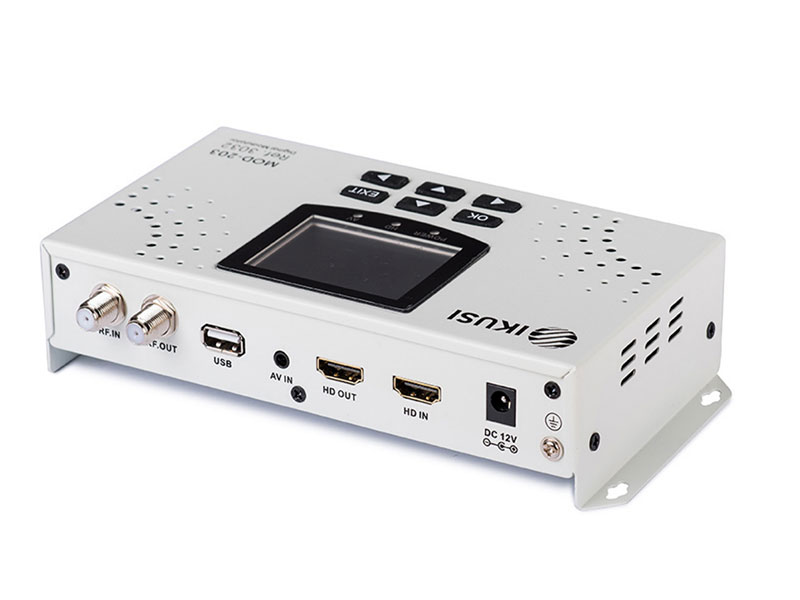

Ikusi MOD-203 HDMI Digital TV Modulator
The MOD-203 is a digital modulator that allows you to convert your video sources from receivers, cameras, video/DVD players, PCs, etc., with HDMI or A/V format, into a COFDM channel
Applications
Video sources (HDMI, A/V) are distributed in COFDM DVB-T thought the coaxial network. It is ideal for hotels, bars, shopping centers etc
Features
• HDMI loop
• Possibility of input in HDMI or A/V
• Easy to configure
• Possible to créate multiple configurations and save them in memory to use them whenever you want
without having to reconfigure everything.
• RF loop for mixing with existing channels.
• RCA/Jack A/V adapter cable included.
• External power supply included.
Specifications
ENCODING
VIDEO
Encoding: MPEG-4 AVC/H.264
Resolution:
1920*1080p@60,
1920*1080p@50
1920*1080i@50
1280*720p@60
1280*720p@50
1920*1080i@60
Aspect ratio: 16:9, 4:3
Bitrate: 1.000 ̴ 18.000Mbps
AUDIO
Encoding: MPEG 1, Layer II
Sample Rate: 48KHz
Bit Rate: 64, 96, 128, 192, 256, 320Kbps
CVBS Encoding Section
Input PAL 576i, NTSC 480i
DVB-T MODULATOR SECTION
Standard: DVB-T COFDM
Bandwidth: 6, 7, & 8MHz
Constellation: QPSK, 16 QAM, 64 QAM
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval: 1/4, 1/8, 1/16, 1/32
Transmission mode: 2K, 8K
MER: > 32dB
RF frecuency: 50 ̴ 950MHz
SYSTEM
Upgrade: USB
Power supply: +12Vdc
Operation temperature: 0 ̴ 45°C
Dimensions (mm): 200 x 115 x 46
RF output level: 76 to 113dBµV Adjustable
