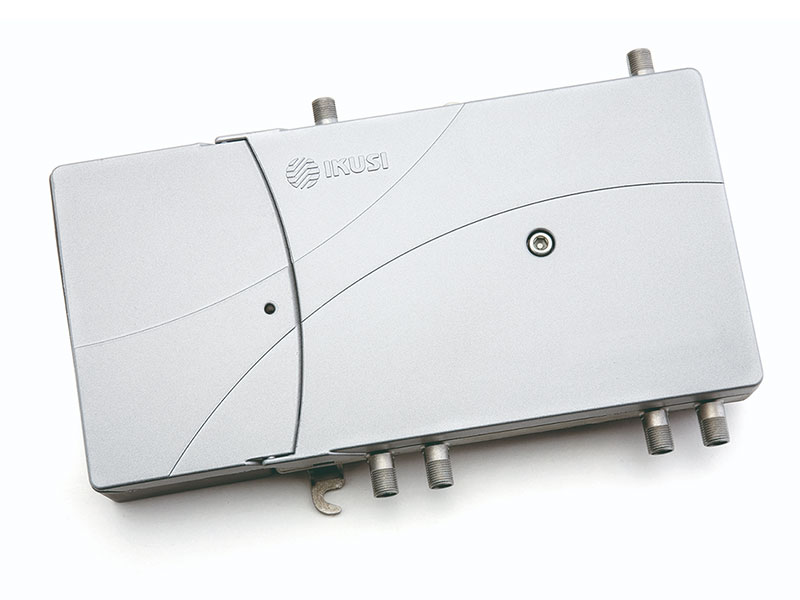

Ikusi SAE-920 Dual Satellite Terrestrial TV Signal Extension Amplifier
Fetures
- Extension Amplifier with dual Satellite inputs
- Seperate amplifications for Terrestrial and Satellite
- Gain and Slope Control
- MESFET-GaAs technology in terrestrial amplification
Specifications
Powering Mode: Mains
Bandwidth: Terrestrial (TV): 45-862MHz, Satellite (IF 1): 950-2150MHz , Satellite (IF 2): 950-2150MHz
RF Inputs: 2 ( 1 x TV & IF-1, 1 x TV+IF2)
Terrestrial TV Path
Response flatness: ± 1.5dB
Nominal gain: 35dB
Variable interstage attenuator: 0 – 18dB
Slope control range: 0 – 18dB
Noise figure: ≤ 8dB
RF output level (DIN 45004B -60dB): 118dBμV
RF output level (CTB, CSO -60dB, EN 42 ch): 102dBμV
Output test -20 ± 1.5dB
Satellite path
Response flatness ± 2dB
Nominal gain 40dB
Variable interstage attenuator 0 – 18dB
Slope control range 0 – 12dB
Noise figure ≤ 6dB
RF output level (EN 50083 -35dB) 120dBμV
Output test -20 ± 1.5dB
General
Operating temperature -10 … +55˚C
Mains supply voltage 110 – 240VAC
Consumption 15W
Dimensions 222 x 140 x 44mm
