Description
CAT 6A 10Gig UTP cable provides transmission performance beyond 650MHz and Alien Crosstalk requirements exceeding the industry standards and ETL Verified to TIA-568-C.2 for supporting the operation of 10Gig Ethernet applications (10GBASE-T). It is designed with unique spline design and non-concentric to minimize AXT from neighboring cables. This cabling provides support for high bandwidth applications such as data centers and other data intensive or backbone requirements.
Specifications
Category: U/UTP CAT6A-4P- PVC
Test Standard: ISO/IEC11801、TIA-568-B
Conductor
Material : Solid-Bare Copper
Nom.O.D.(mm) 0.565 up +0.005, down -0.005
Insulation
Material HDPE
Diameter 1.02±0.03mm
Sheath
Thickness 0.70±0.05 mm (Avg.)
External O.D. 7.1±0.5 mm
Surface Clean,Frap,Satiation
Material PVC(complies RoHS)
Color Blue RAL5012
Surface Printing
Letter height 3.0±0.3mm
Color Black
Print error & Space ≤±0.5%，1m
Core Color
1 White- Blue /Blue 2 White-Orange /Orange
3 White-Green /Green 4 White- Brown /Brown

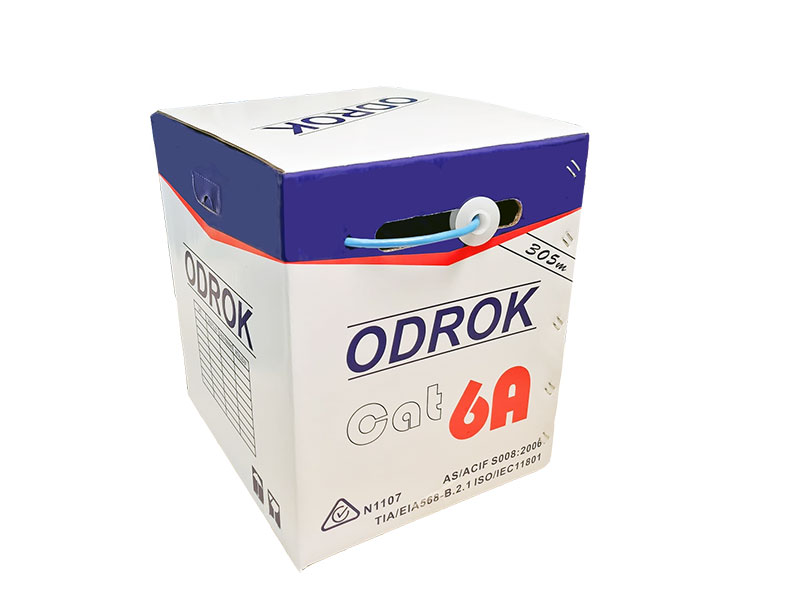

Packing
305m Reel in box
Rip-cord
Yes
Drain wire
No
Sheath Physical Properties
Before Aging Tensile Strength (Mpa) ≥13.5
Elongation(%) ≥150
Aging Period (℃×hrs) 100℃×24h×7d
After Aging Tensile Strength(Mpa) ≥12.5
Elongation(%) ≥125
Cold bend(-20±2 ×4 ℃ h) 8×Cable O.D.， No visible cracks
Electrical Characteristics (20 ) ℃
Impedance(Ω) 1.0-250.0MHz 100±15
251.0-500.0MHz 100±22
1.0-500.0MHz Delay Skew (ns/100m) ≤45
DC Resistance (Ω/100m) max 9.38
DC Conductor Resistance Unbalance (%) max 5.0
Technical Performance (100m):
| Frequency | RL | ATT | NEXT | DELAY |
| (MHz) | ≥dB | ≤dB | ≥dB | ≤ns |
| 1 | 20 | 2.1 | 74.3 | 570 |
| 4 | 23 | 3.8 | 65.3 | 552 |
| 8 | 24.5 | 5.3 | 60.8 | 546.7 |
| 10 | 25 | 5.9 | 59.3 | 545.4 |
| 16 | 25 | 7.5 | 56.2 | 543 |
| 20 | 25 | 8.4 | 54.8 | 542.1 |
| 25 | 24.3 | 9.4 | 53.3 | 541.2 |
| 31.25 | 23.6 | 10.5 | 51.9 | 540.4 |
| 62.5 | 21.5 | 15 | 47.4 | 538.6 |
| 100 | 20.1 | 19.1 | 44.3 | 537.6 |
| 200 | 18 | 27.6 | 39.8 | 536.5 |
| 250 | 17.3 | 31.1 | 38.3 | 536.3 |
| 300 | 16.8 | 34.3 | 37.1 | 536.1 |
| 500 | 15.2 | 45.3 | 33.8 | 535.6 |
Frequency PSNEXT ELFEXT PSELFEXT
(MHz) ≥dB ≥dB ≥dB
1 72.3 67.8 64.8
4 63.3 55.8 52.8
8 58.8 49.7 46.7
10 57.3 47.8 44.8
16 54.2 43.7 40.7
20 52.8 41.8 38.8
25 51.3 39.8 36.8
31.25 49.9 37.9 34.9
62.5 45.4 31.9 28.9
100 42.3 27.8 24.8
200 37.8 21.8 18.8
250 36.3 19.8 16.8
300 35.1 18.3 15.3
500 31.8 13.8 10.8
