Odrok FM64 Full Motion TV Bracket


SKU: 471011 Categories: ,


Odrok FM64 Full Motion TV Bracket

Open Up Your Living Space – Protect Kids & Pets – Installation Made Easy

This Multi Position TV Wall Mount is perfect for mounting screens in corners, or in rooms with multiple viewing angles, such as open-plan living spaces or maybe a bedroom where you might want to view from a chair in the daytime and then turn and tilt your screen down to comfortably view from your bed in the evening.

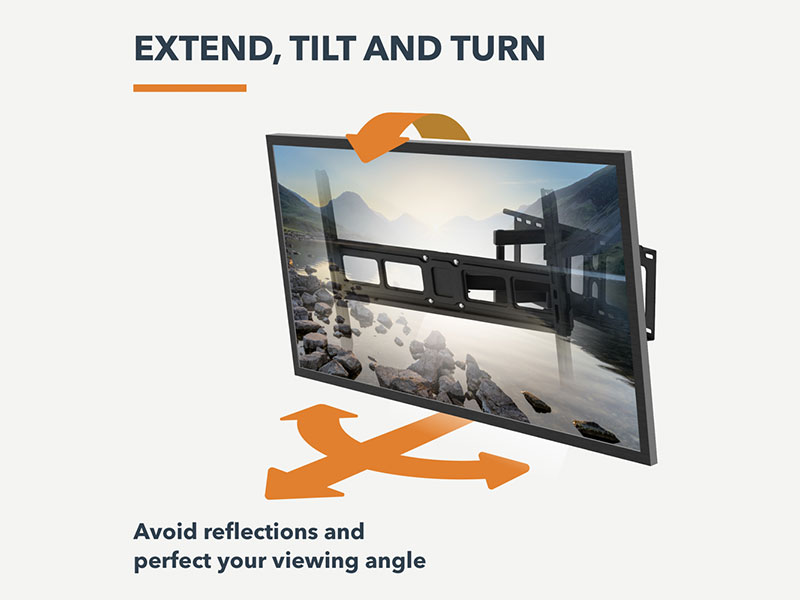

The articulating arm offers the ability to easily adjust your screen to view from almost any angle and tilt up or down to achieve perfect positioning and reduce on-screen light glare and reflections.

Designed for 37 to 80” TVs weighing up to 50kg, this product is strong, secure, and easy to install.

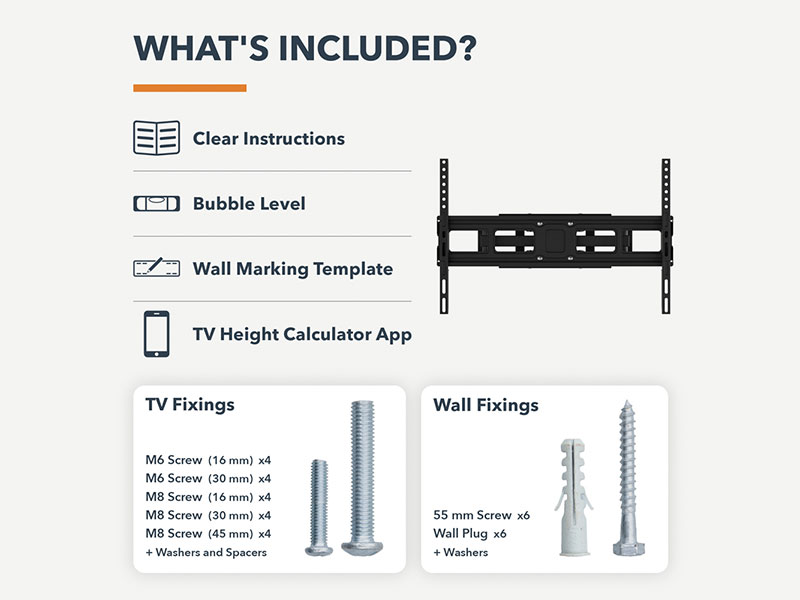

Inside the box, you will find clear instructions plus wall fixings for wood stud walls and solid walls.

Product Features

  • TV Wall Mount with fully articulated arm
  • Adjust to view from any angle
  • Perfect for mounting TVs in corners
  • Tilt to avoid light glare and reflections
  • Includes fixings for wood studs and solid walls
  • Easy 3-step installation, with clear instructions

Technical Specifications

  • TV Screen Size: 37 – 80″ / 81 – 165cm
  • Maximum TV Weight: 50 kg / 110 lb.

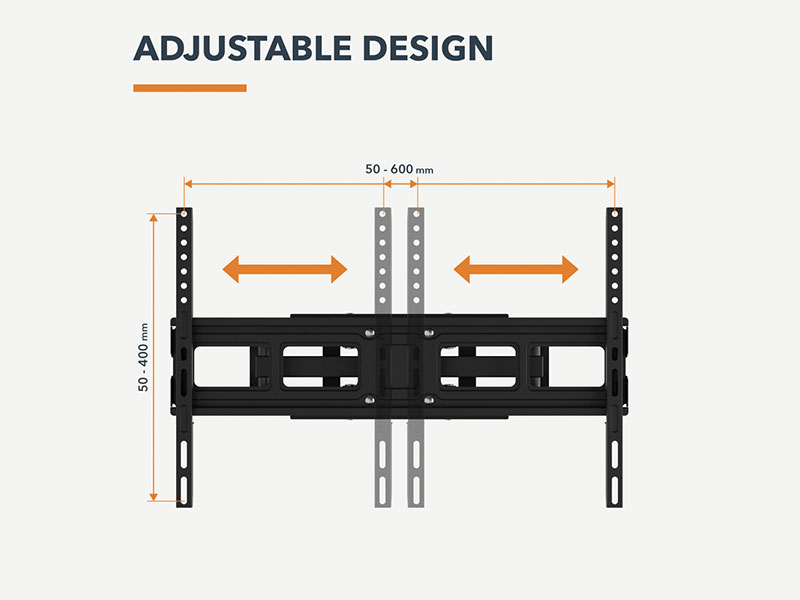

  • VESA Compatible Sizes: 50 x 50mm (min) – 600 x 400mm (max)
  • Wall Stud Fixing: Double Stud (or solid wall)
  • Minimum Distance From Wall: 8 cm / 3.15 in.
  • Maximum Distance From Wall: 38.2 cm / 15.04 in.
  • Tilt Range: 12° down / 12° up
  • Product Weight: 6 kg / 13.2 lb.


Suitable for TVs from 37 to 80″

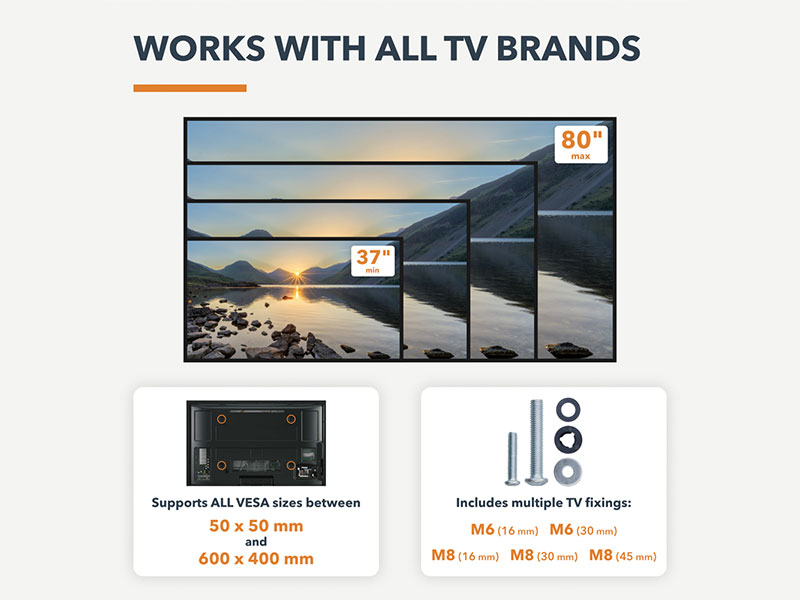

Fits TVs from 37 to 80″ with a maximum weight of 50 kg. All VESA sizes between 50 x 50 and 600 x 400 mm are supported, including these standard sizes:

  • 50 x 50 mm, 75 x 75 mm, 100 x 100 mm,
  • 200 x 100 mm, 200 x 200 mm, 200 x 300 mm,
  • 300 x 100 mm, 300 x 200 mm, 300 x 300 mm,
  • 400 x 100 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm
  • 600 x 100 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm

“VESA size” is the distance between the four mounting holes on the back of your TV (width x height)

Installation Made Easy

  •  TV Height Calculator App: Our easy web app allows you to mount your TV at your desired height – no download required!
  •  Removable Bubble Level: A removable bubble level is included in the box, to ensure a perfect installation.
  • Wall Marking Template: Our easy to use template allows you to position your holes before you start drilling.
  • Clear Printed Instructions: Clear, printed instructions are included, with helpful links to our video guide.

*Other equivalent brands/models may be substitued when supply is not available

Additional information

Weight 10 kg
