Description

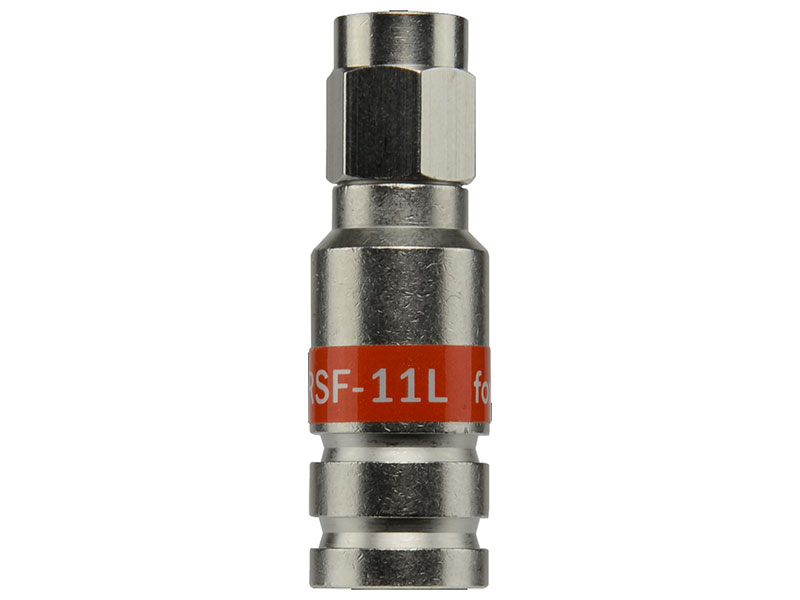

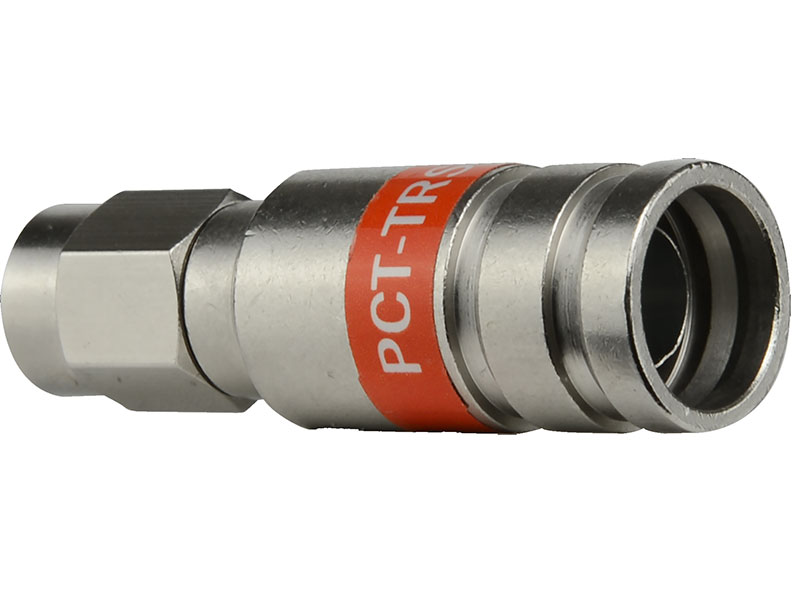

PCT PCTTRSF11L F Type Connector for RG11 Foxtel Approved
The PCT PCTTRSF11L Foxtel F Type Connector is a compression F-type connectors for RG11 coaxial cable
Key Features
- RG11 F Compression Connector
- Band Width 5-3000 MHz
- 75 Ohm Impedance
- Built in lock washer guarantees a secure, metal to metal quality connection between F male and female ports
- Patented split-ring lock washer
- Patented dual 360° compression rings
- Dual O-Ring Design
- Delivers supreme barriers against moisture intrusion without the need for an external grommet (i.e. weather seal)
- Retains its torque integrity even with repeated refastening to the female port
Foxtel Approval: F30709
SKU: 601033
Building upon PCT International’s field-proven TRS connector design, our patented torque retaining connector technology provides the premium reliability that the industry needs to harden the drop.
PCT’s continuous ground feature – standard on our PCT-TRSF-11L torque retaining connector – maintains greater immunity to ingress and egress due to loose connections, both inside and outside of the home. Laboratory testing has proven that, even in a loosened state, the PCT-TRSF-11L’s unique features keep the connection tight while providing enhanced shielding and continuous grounding.
Lock washers are used in almost all applications that involve vibration, such as moving parts & engines, to ensure that the bolts holding the items together stay as tight as the day they were installed.
The lock washer located beneath the post guarantees a secure, metal-to-metal connection between the F-male and F-female faces on the port ensuring a quality connection every time. Our connectors can be repeatedly tightened and loosened without any loss of torque retaining ability, ensuring a long life span in the field or home.
In addition to the torque retaining features, PCT connectors also offer superior sealing protection through dual compression rings and dual O-rings. Our specially designed
post allows the O-ring, located in the face of the connector, to seat inside a small chamber allowing a true metal-to-metal contact with both the post and the face of
the port. Typical most moisture enters through the threads of a connector. Our dual O-ring design eliminates the need for an additional weather seal. PCT is one of the
few manufactures that maintains a high pass rate on the SCTE IPS moisture migration test without the use of weather boots during testing.
Compatible with 60% thru quad shield RG6 coaxial cable. Foxtel Approved.
