Description

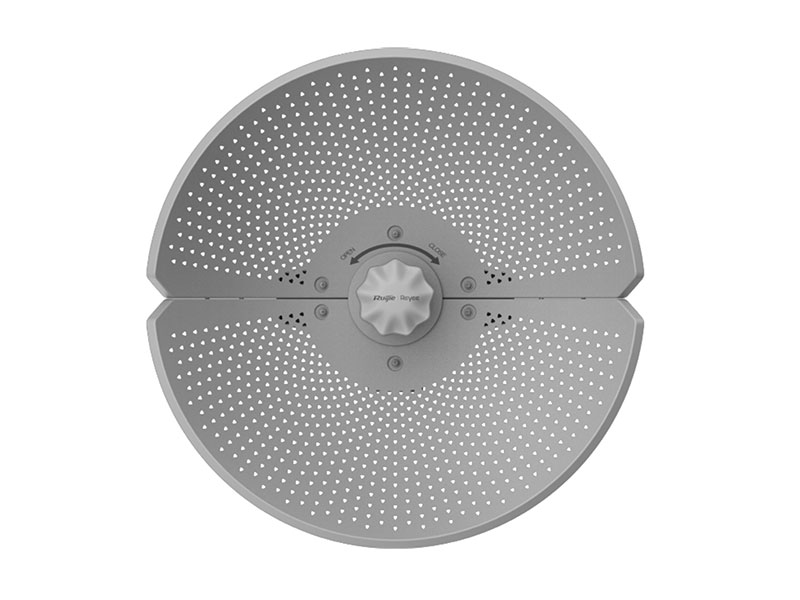

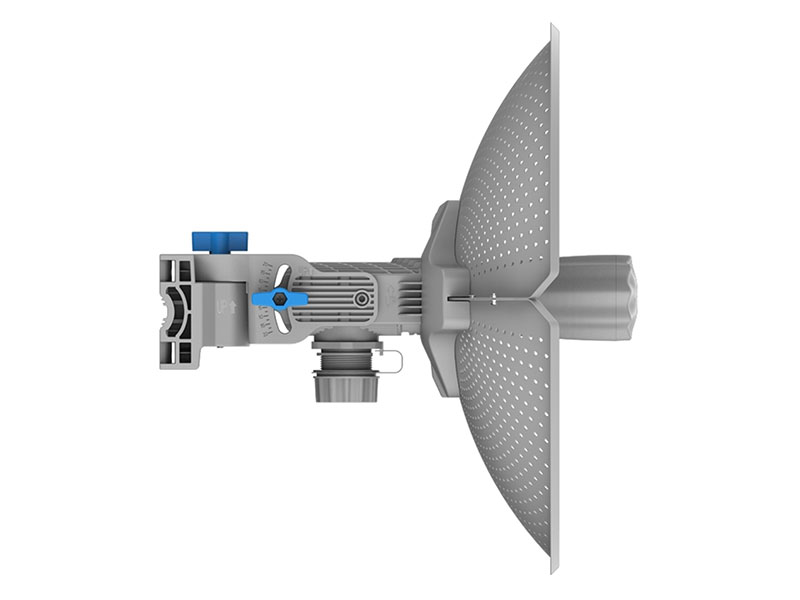

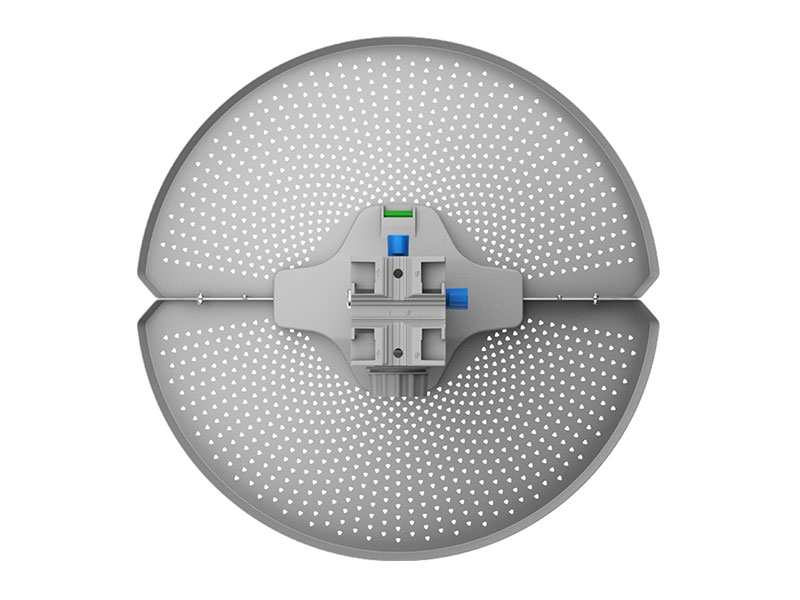

Ruijie Reyee RG-AirMetro460G CPE for Wireless Bridges
Features
-
-
- PTP Max. 15 km Working Distance
- PTMP Easy Pairing All in 30 sec
- 230Mbps Bridging Performance at 1km
- 24 V Passive PoE
- IP65, 6 kV Surge Protection and ±24 kV ESD against Harsh Environment
- 220.32 km/h (137 mph) Wind Survivability
- All-in-one Cloud Management Simplifies the User Journey
-
Ruijie Reyee Wireless Bridge Setup Video
Ruijie Reyee Point to Multi Point Setup Video
Ruijie Reyee Point to Multi Point Project Setup Video
RG-AirMetro460G Installation Video
Specifications
Dimensions (Diameter x Length, including mounting kit): 368.5 x 271 mm
Working Distance: 15 km
Bridge Performance: 230Mbps @1km, 200Mbps @2km, 150Mbps @5km 80Mbps@10km,
Gain: 23 dBi
Angle: H: 9°, V: 9°
Capacity: 5 GHz, 867 Mbps
Port: 1 x 10/100/1000 Mbps
IP Rating: IP65
Operation Temperature*: –40℃ to +70℃
ESD: ±24 kV Contact/ Air
Surge Protection: 6 kV
Power: 24 V Passive PoE (PSU Included)
LED: 3 Signal Strength LED 1 LAN LED 1 System LED
Pairing Method: One-touch pairing in 30 sec App pairing in 2 mins
Certification: CE
What’s in the box
1 x CPE Station
1 x Mounting Bracket
2 x Pipe Clamps
1 x 24V PoE Injector
1 x AU Power Cable
1 x Warranty Card
1 x Instruction Manual
