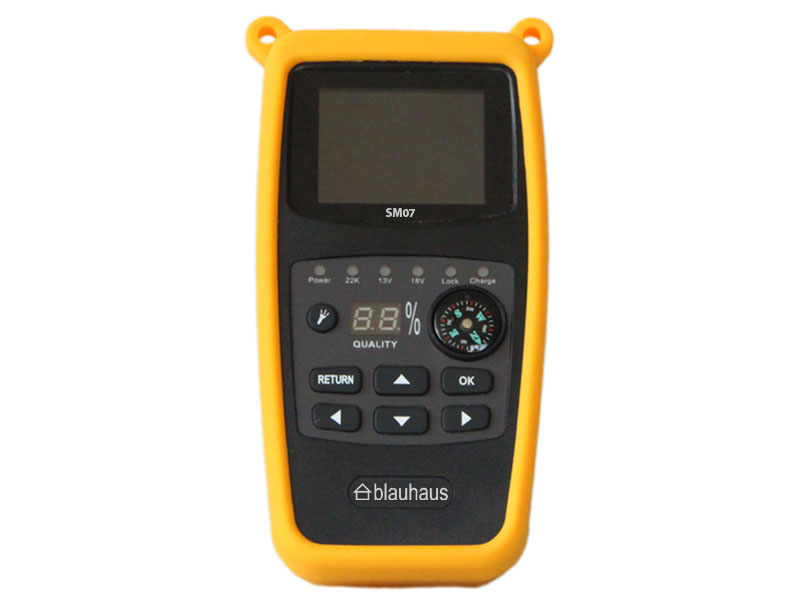

Blauhaus SM-07 Satellite TV Signal Meter

$120.00

This model replaces the Satlink WS-6933 we’ve previously carried

PDF: SM07 User Manual



Description

Blauhaus SM-07 Satellite TV Signal Meter

Are you tired of poor satellite TV reception and fuzzy picture quality? Want to ensure that you’re getting the best possible signal for your satellite TV? Look no further than the Blauhaus SM-07 Satellite TV Signal Meter!

The Blauhaus SM-07  is the perfect tool for both home users and professional installers. With its easy-to-read 2.5″ LCD digital display, you can quickly and accurately measure the strength and quality of your satellite signal, ensuring that you get the best possible picture quality on your TV.

Whether you’re setting up a new satellite TV system, troubleshooting an existing one, or just want to make sure that you’re getting the most out of your satellite service, our satellite TV signal meter is the perfect tool for the job.

So why wait? Order your satellite TV signal meter today and start enjoying the best possible satellite TV experience!

This model replaces the Satlink WS-6933 we’ve previously carried

Features

  • Digital meter for signal strength and quality
  • Sound and Light Alarm for Locking Signal
  • Auto Calculate Angle of AZ ,EL
  • Supports DISEQC 1.0/1.1 ,0/22khz Tone
  • Beep Integrated
  • LNB short protect
  • Support mechanical compass
  • 7.4V/800mAh Li-Ion Battery Included
  • Software upgrade via USB port
  • Easy to carry

Specifications

Transmission Standards
DVB-S/S2

Satellite Input / Demodulation
Connector Type: F Type
Input Frequency: 950 to 2150 MHz
Signal Input Level: – 65 to -25 dBm
Band Switch Control: 22KHz
LNB Supply: 13V/18V, IMax 300mA
Demodulation Type: QPSK,8PSK
Symbol Rate: 2<Rs<45Mband(SCPC/MCPC)

LCD Features
LCD Type: TFT Positive transflective
Number of Dots: 240(RGB)*320
Active area (WxH): 36.72(W) * 48.96(H)mm

Data Service Port
Connector: USB
Data protocol: USB to RS-232

Power Supply
Li-Ion Battery: 7.4V/800mAh
Adapter: OUTPUT :DC12V/1A, INTUPT :100-240VAC 50/60Hz
Power consumption: Max. 5W

Physical Characteristics
Size (W x D x H): 8x16x4 cm
Net Weight: 0.25kg



For a complete list of Satellite TV Signal Meters, please follow this link
