Triax Ikusi Flow Hub Module

$3,804.63

Description

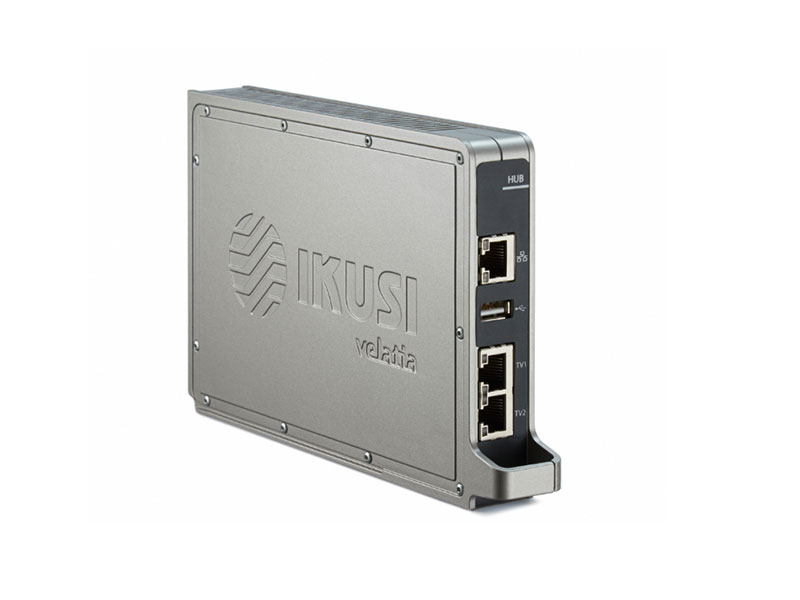

Triax Ikusi Flow Hub Module

Control module (HUB) for the Ikusi Flow headend.

The FLOW HUB is the central connecting element of the Ikusi FLOW headend, with a dual routing and control function. It routes the ethernet traffic in the headend, both internally between modules, and between the modules and the outside world. It also performs centralized management and configuration of the entire Ikusi FLOW headend and exposes the web interface for configuration and control through dedicated Wi-Fi and wired ethernet connections. It is also able to detect existing RF channels in a network to avoid using them in the headend out

Specifications

Model FLOW-HUB
Ref. 4314
Wi-Fi interface
Interface type Wireless LAN
Standard Wi-Fi
Radio band GHz 2,4
Reception/Transmission mode SISO
TX power dBm -18
RX power dBm -96
Connection SDIO controller
Layer 3 addresses assignment SoftAP / DHCP
Security WPA 2.0
External ethernet interface (control)
Number of interfaces 1
Interface type Gigabit Ethernet
Standard 1000BASE-T
VLAN support IEEE VLAN
External ethernet Output (TV)
Number of interfaces 2
Interface type Gigabit Ethernet
Standard 1000BASE-T
VLAN support IEEE VLAN
Backpanel ethernet interface
Number of interfaces 10
Interface type Gigabit Ethernet
Standard 1000BASE-T
VLAN support IEEE VLAN
RF channels detection
Terrestrial input
Supported standards DVB-T/T2
Frequency band MHz 47 – 862
Input level in BASE dBμV > 45
Cable input
Supported standards DVB-C
Frequency band MHz 47 – 862
Input level in BASE dBμV > 50
General
Power supply voltage VDC 24
Power consumption W 11
Remote mode IP (Wi-Fi or BASE-T)
Operating temperature ºC 0 … +45
RF input connectors (backpanel) F (x1)
External ethernet frontal connector (control) RJ-45 single
External ethernet frontal connector (TV) RJ-45 dual
USB frontal connector (control) Type-A socket
Weight g 454
Dimensions
(Height x Width x Depth) mm 125 x 27 x 210



Additional information

Weight 3 kg
