Description

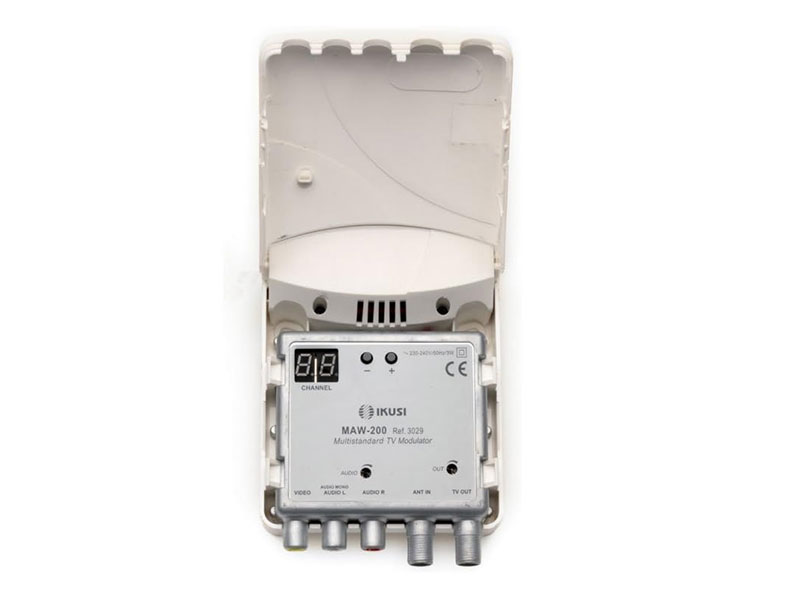

Ikusi MAW-200 Analogue TV Modulator
Features
- Appropriate use with TV satellite receivers, VCR’s and video cameras.
- Direct video/audio modulation. Multistandard. Mono sound. DSB (Double Side-Band) TV output channel.
- Agile selection of channel. Possibility of shifting the standard video carrier frequency up to ±2.5 MHz.
- Possible connection of stereo sound sources. L and R signals are summed.
- Built-in test pattern generator.
- Two buttons and one 2-digit LED display for selection and programming of operating parameters.
- Panel potentiometers for audio modulation and RF output level settings.
- Input port for RF coupling of antenna/SMATV signal.
- External plastic box. Indoor mounting. Wall fixing by two screws.
- Insertable mains lead. AC power indicator.
- Interfacing kit CVA-002 available.
For specifications, see the pdf attached.
