Description
Clenergy ER-I-09 Klip Lok 700 Bracket
The Clenergy ezRack Klip Lok Roof mount interface provides an easy way to mount solar panels on Klip-Lok type roofs – without penetrations. It features heat and weather resistant EPDM rubber

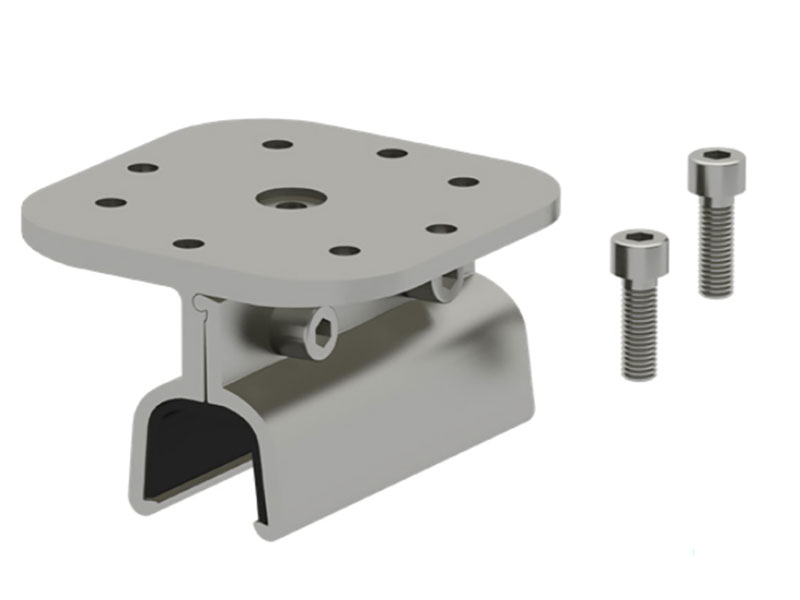

The Klip-Lok interface is a small platform that clamps on to the Klip-Lok ‘ribs’ without drilling through the tin. An L-foot is then fixed to the Klip-Lok interface. The interface is also compatible with Clenergy’s tilt legs allowing tilt angles from 15 to 60 degree to maximise the system performance.
The Klip Lok Roof mount features heat and weather resistant EPDM rubber to prevent corrosion.
Suitable for the following roof styles
Lysaght Klip-lok 700 Classic
Lysaght Klip-lok 700 Hi-Strength
Stramit Speed Deck Ultra
Fielders King Klip 700
Stratco Topdeck 700
Metroll Metlok 700
Stramit Speed Deck 500
Specs
Mounting Method:Clamping
Colour: Silver
Compatibility:Tilt Legs, L Feet, Inter Clamp, End Clamp
Material:AL/6005-T5, EPDM rubber
Plate Dimensions: 100mm x 100mm x 05797E0A44|MAG540
WARNING! THE USE OF THE KLIP-LOK TYPE BRACKET IS NOT ACCREDITED ON ANY OTHER ROOF TYPES THAN THE FOUR LISTED ABOVE.
Cliplock, Clip Lock, Clip Lok, Kliplok
