Ikusi FSP-303 3 Way Optical Splitter

$495.00

PDF: Ikusi FSP Optical Splitter Data Sheet

SPECIAL BUY IN ITEM – PLEASE CONTACT US FOR AVAILABILITY

Available on backorder

Description

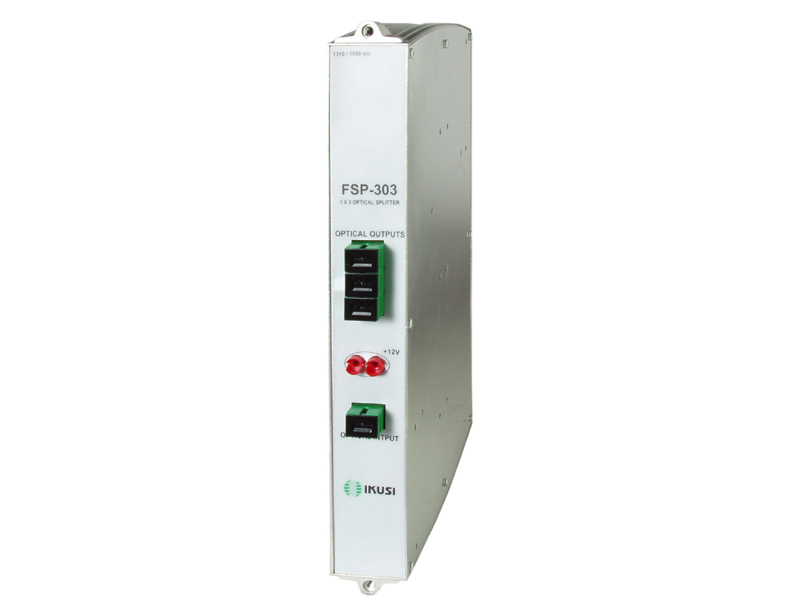

Ikusi FSP-303 3 Way Optical Splitter

For sharing out the optical power of FTD transmitters to feed multiple field nodes

For single mode fibre applications.

The splitters share out the optical power of FTD transmitters to feed multiple field nodes, hence maximizing the use of optical transmission equipment.
The units are reciprocal and can also be used to combine multiple return path fibres to feed one FRR return path receiving module.

Specifications

No of optical outputs: 3
Wavelength: 1310-1550nm (±40)
Insertion Loss: 5.5dB
Return Loss: >55dB
Output Isolation: >55dB
Input/Output connectors: SC/APC 8°
Dimensions: 230 x 195 x 32mm

Additional information

Weight 4 kg
