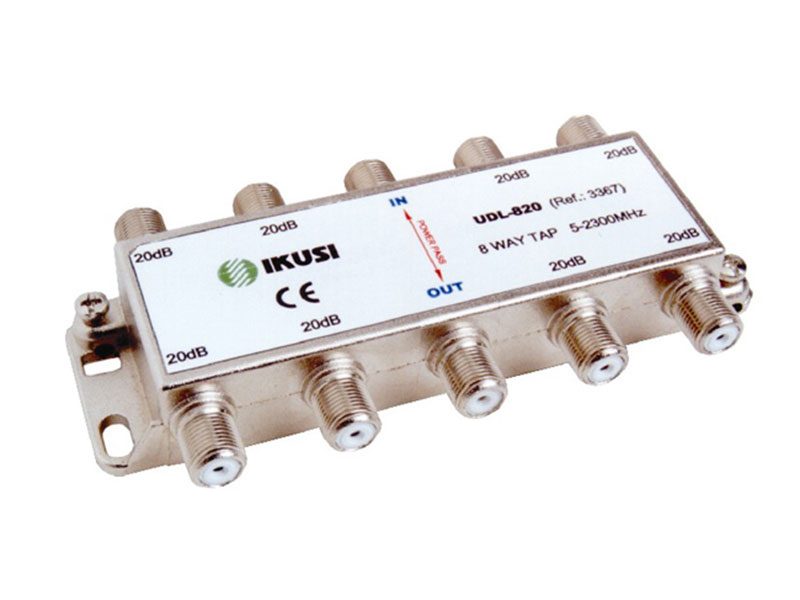

8 Way MATV Indoor Tap 5-2400MHz (Various dB)

$17.50$20.00

Clear
SKU: N/A Category:

Description

MATV Tap 8 Way 5-2400MHz Power Passing

Dimensions

120mm x 65mm x 25mm
200g

RF Taps are commonly used in commercial or complex RF distribution networks. Where a splitter splits the signal evenly, a tap splits the signal unevenly.

For example: A 10 storey hotel has antenna mounted on the roof  the antenna signal runs down a riser and splits off at each floor. If a standard splitter were used at the top floor then half of the signal would go to level 10, while half of the signal goes on to floors 1-9. This is not a desirable situation and would lead to an unbalanced system where the signal levels on floor 10 would be high and the signal levels on floor 1 would be low. In this situation a tap would be used. In this example, the OUT port would continue down the riser, and the TAP port would be used for each floor. In the 10 floor hotel, a higher tap rating (ie 25dB) would be used at the top and lower tap ratings (ie 5dB) used for the lower floor

506024 Ikusi UDM-815 15dB 8 Way Tap

506022 Ikusi UDM-820 20dB 8 Way Tap

506023 Ikusi UDM-825 25dB 8 Way Tap

Additional information

Tap dB

15dB, 20dB, 25dB
